| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 3 |
| ITALIAN PROJECTILES AND CASES |
| 12.7-mm H.E. |
| Data |
|
Gun used in |
12.7-mm Aircraft Machine Gun |
|
Over-all length of round |
102.5 mm |
|
Weight of complete round |
84.1 mm grams |
|
Length of projectile |
51.3 mm |
|
Weight of projectile |
37.5 grams |
|
Type of filling |
Penthrite-wax mixture |
|
Weight of filling |
0.8 grams |
|
Length of cartridge case |
81 mm |
|
Weight of propellant |
8.2 grams |
| Remarks |
|
The projectile consists of a steel body with a coating of gilding metal in the exterior, which is thickned to form a rotating band. The fuze is similar in action to the German AZ 5045. |
|

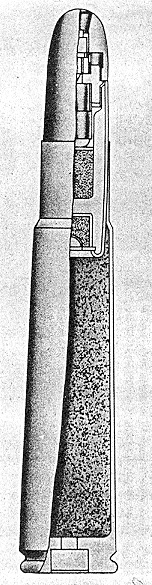

Figure 86 |
|
|
 |
