| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 3 |
| ITALIAN PROJECTILES AND CASES |
| 12.7-mm Incendiary (Blue Tip) |
| Data |
|
Gun used in |
12.7-mm Aircraft Machine Gun |
|
Over-all length of round |
106.7 mm |
|
Weight of round |
84.5 grams |
|
Length of bullet |
44.6 mm |
|
Weight of bullet |
36.5 grams |
|
Length of cartridge case |
81 mm |
|
Weight of propellant |
8.1 grams |
| Remarks |
|

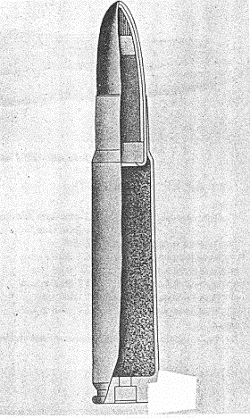

This bullet consists of a copper-nickel jacket with a copper sleeve container, a brass core, and a lead base plug. The tip of the copper sleeve in front at the brass core is fi-lled with phosphorus, and the rear of the sleeve is sealed to the base of the core with soft solder. |
|
Figure 84 |
|
|
 |
