| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 3 |
| ITALIAN PROJECTILES AND CASES |
| 7.7-mm Ball |
| Data |
|
Gun used in |
7.7-mm Aircraft Machine Gun |
|
Over-all length of round |
77.5 mm |
|
Weight of round |
25.43 grams |
|
Length of bullet |
32.9 mm |
|
Length of cartridge case |
56 mm |
|
Propellant |
2.56 grams |
| Remarks |
|
This round is interchangeable with the British 0.303-in. and is almost identical to the Bri-tish Mk VII. The bullet has a copper-nickel plated steel jacket enclosing an aluminum for-ward core and a lead core in the rear. |
|

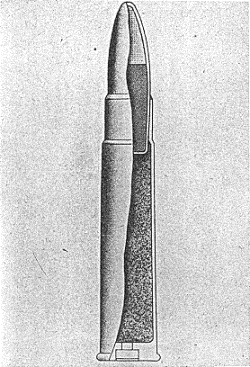

Figure 78 |
|
|
 |
