| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 3 |
| ITALIAN PROJECTILES AND CASES |
| 7.35-mm Ball |
| Data |
|
Gun used in |
Fucile M° 38 Rifle |
|
Over-all length of round |
73.3 mm |
|
Weight of complete round |
20.10 grams |
|
Over-all length of bullet |
27.4 mm |
|
Weight of bullet |
8.32 grams |
|
Length of cartridge case |
53.3 mm |
|
Weight of propellant |
2.6 grams |
| Remarks |
|
The round has the marking B.T.M. on the base of the brass cartridge case. The projectile has a nickel-plated steel jacket enclosing an aluminum case and a lead core to rear of the aluminum. |
|

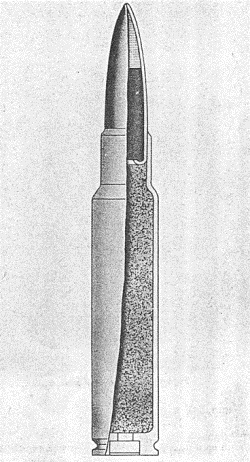

Figure 77 |
|
|
 |
