| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 3 |
| ITALIAN PROJECTILES AND CASES |
| 7.7-mm A.P.I. Incendiary (Blue Tip) |
| Data |
|
Gun used in |
7.7-mm Aircraft Machine Gun |
|
Over-all length of round |
77 mm |
|
Total weight of round |
23.33 grams |
|
Length of bullet |
35 mm |
|
Weight of bullet |
9.96 grams |
|
Length of cartridge case |
56 mm |
|
Weight of propellant |
2.4 grams |
| Remarks |
|
This round consists of brass cartridge case, a copper cap, and a bullet whose jacket is pierced with four holes on the ogive so that at these points the incendiary composition is protected only by a thin copper sleeve. The jacket is steel plated with either copper-nickel or copper-nickel alloy. A copper sleeve, a steel core in a lead sheath, and the for-ward nose position filled with phosphorus are enclosed by the bullet jacket. The four ho-les on the ogive permit the distrubution of the phosphorus on impact. |
|

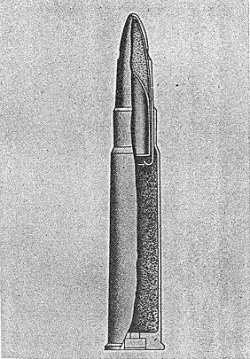

Figure 79 |
|
|
 |
