| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 1 |
| ITALIAN BOMBS |
| 40-kg Gas Bomb C40P |
| Data |
|
Over-all length |
32.3 in. |
|
Body length |
21.4 in. |
|
Body diameter |
9.9 in. |
|
Tail length |
16.1 in. |
|
Tail width |
9.9 in. |
|
Type of filling |
(A) Diphenyl Chlorasine | (B) Mustard |
|
Weight of filling |
6.5 kg | 14.7 kg |
|
Weight of burster |
13.0 kg | 0.18 kg |
|
Total weight |
47 kg | 40.6 kg |
| Fuzing |
|
Tail only - Unknown |
| Description |
|
This bomb is similar to 40-kg G.P.-H.E. bomb in size and appearance. The burster tube contains TNT and is about fifteen in. long Other informations is lacking. |
| Color and Markings |
| (A) Over-all - yellow; stenciled in black - Geneva cross |
| (B) Over-all - yellow; nose - red; stenciled in red marking: |
|
N 2226 Lorpo KG 359; Tara KG179 |
|

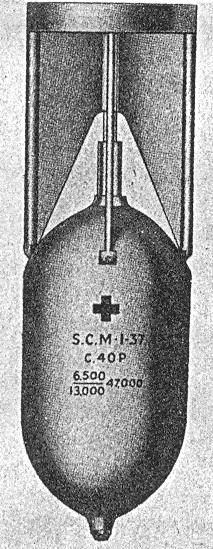

Figure 27 |
|
|
 |
