| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 1 |
| ITALIAN BOMBS |
| 55-kg Gas Bomb and 100-kg Gas Bomb (C100P) |
| Data |
| 55-kg | 100-kg | |
|
Over-all length |
32.3 in. | 50.2 in. |
|
Body length |
32.5 in. | |
|
Body diameter |
9.8 in. | 10.7 in. |
|
Tail length |
20.8 in. | |
|
Tail width |
10.7 in. | |
|
Type of filling |
Phosgene | Diphenyl Chlorarsine |
|
Weight of filling |
20 kg | 14.3 kg |
|
Weight of burster |
18 kg | 28.7 kg |
|
Total weight |
55 kg | 101.9 kg |
| Fuzing |
|
55-kg - Unknown |
| Description |
|
These bombs are similar to same weight G.P.-H.E. bombs. Little informations has been found on them. |
| Color and Markings |
| 55-kg: Overall - yellow; stenciled in white - Geneva cross |
| 100-kg: Overall - yellow; stenciled in black - Geneva cross |
|

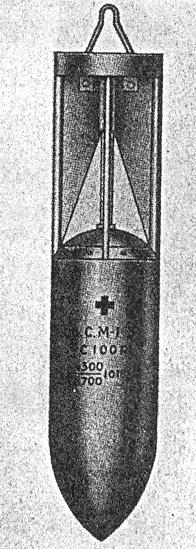

Figure 28 |
|
|
 |
