| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 1 |
| ITALIAN BOMBS |
| 40-kg G.P.-H.E. Bomb |
| Data |
|
Over-all length |
32.3 in. |
|
Body length |
19.7 in. |
|
Body diameter |
9.0 in. |
|
Tail length |
16.1 in. |
|
Tail width |
9.0 in. |
|
Type of filling |
TNT |
|
Weight of filling |
Unknown |
|
Total weight |
40 kg |
| Fuzing |
|
Tail only - Type N-3 |
| Description |
|
The bomb has a steel body and nose in one piece. The tail is of sheet-metal construc-tion, with a strengthening band at the end. The tail unit is bolted to four square lugs on the body. |
| Color and Markings |
| Overall - grey; nose - red |
| Remarks |
| This bomb is very similar to 40-kg gas bomb except for filling. |
|

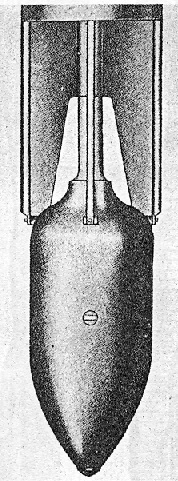

Figure 7 |
|
|
 |
