Chapter 5 - Section 1
NAVY PROJECTILES
Type 5 - 30-mm High-Explosive Tracer Projectile
Fuzing: Rotor type fuze.
Length of projectile (without fuze): 3.53 inches.
Length of complete round: 8.31 inches.
Filling: Pentolite.
Color and markings: Red over all or a red band at the nose.

Remarks: The body of the projectile contains two cavities separated by a steel septum. The upper cavity contains the H.E. filling, while the lower contains the tracer.

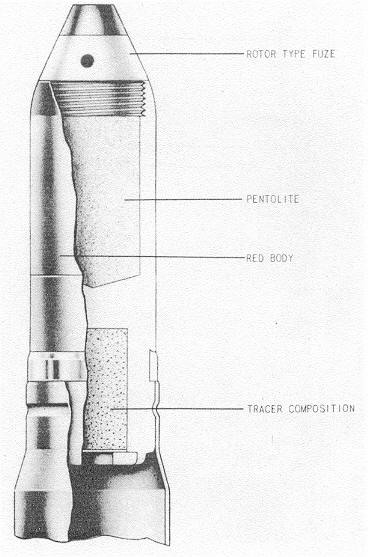

Figure 366 – Type 5 30-mm High-Explosive Tracer Projectile.
