NAVY PROJECTILES
Type 5 - 30-mm Tracer Projectile
Fuzing: Nose plug.
Length of projectile (without fuze): 3.53 inches.
Length of complete round: 8.31 inches.
Filling: None.
Color and markings: Red over all or a red band at the nose.

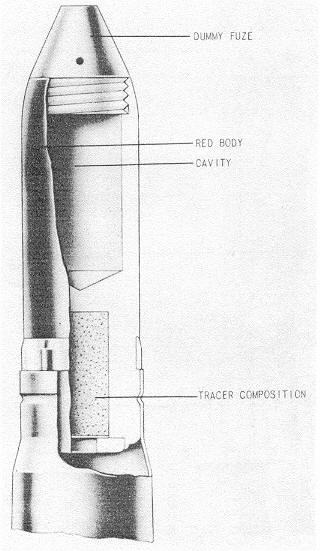

Figure 367 – Type 5 30-mm Tracer Projectile.
