NAVY PROJECTILES |
30-mm Type 2 and Type 5 - High-Explosive Incendiary Projectile |
Fuzing: Rotor type fuze. |
Type 2 | Type 5 | ||
Length of projectile (without fuze) | 2.83 inches | 3.53 inches. | |
Length of assembled round (fuzed) | 6.57 inches | 8.31 inches. |
Weight of filling (type 2): |
Pentolite: 3.56 grams. |
White phosphorus: 19.94 grams. |
Filling: Pentolite and white phosphorus. |
Color and markings: Greenish-yellow over all. |
Type 5 projectile is sometimes unpainted except for a greenish-yellow band at the nose. |
Remarks: The one-piece projectile contains only one cavity. The H.E. is surrounded by a cardboard below which is contained the W.P. in a metal canister. |

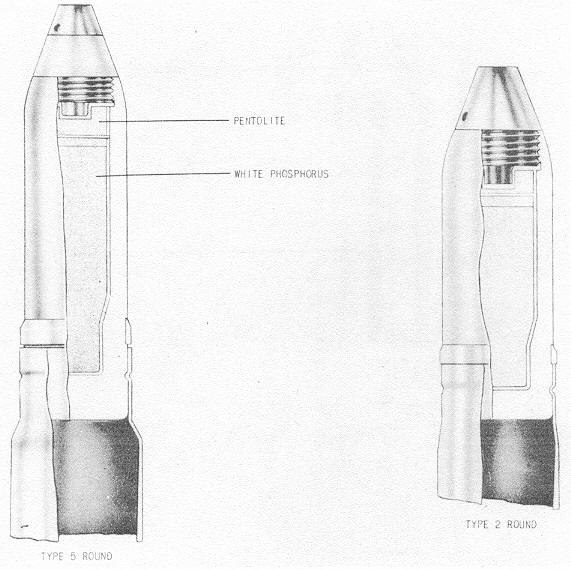

Figure 365 – Type 2 and Type 5 30-mm High-Explosive Incendiary Projectile. |
|
![]() ![]() ![]() ![]() |
