Chapter 5 - Section 1
NAVY PROJECTILES
30-mm Type 5 - High-Explosive Projectile
Fuzing: Rotor type fuze.
Length of projectile (without fuze): 3.53 inches.
Length of complete round: 8.31 inches.
Filling: Pentolite.
Color and markings: Maroon over all.
Remarks: This projectile is a precast block surrounded by cardboard.

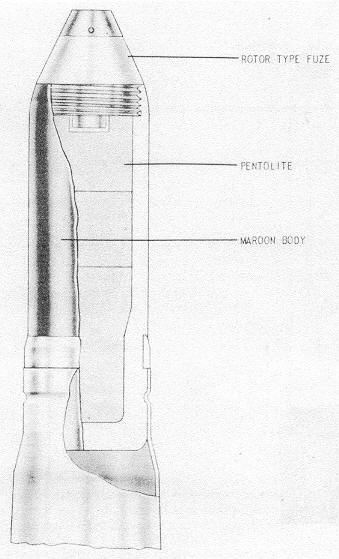

Figure 364 – 30-mm Type 5 High-Explosive Projectile.
