NAVY PROJECTILES
30-mm Ammunition

Two 30-mm aircraft cannon, the type 2 and the type 5, were in use by the Japanese. These guns are of Oerlikon design and use similar ammunition. The type 5 gun uses a lon-ger case and a slightly heavier projectile than the type 2 gun.

Case: The case for the type 2 gun is of typical Oerlikon design. It is a comparatively short brass reduced-rim case slightly necked.

The case for the type 5 gun is longer, has a more pronounced neck, and is of the rimless type.

Type 2 Type 5
Length of case 3.58 inches 4.81 inches.

Projectiles: Like the 20-mm ammunition, the type of projectile is indicated by painting the projectile body a solid color. However, some of the type 5 projectiles were unpainted except for a narrow band behind the nose fuze.

The following dimensions are common to all projectiles:
Type 2 Type 5
Diameter at bourrelet 1.18 inches 1.18 inches.
Width of rotating band 0.24 inch 0.31 inch

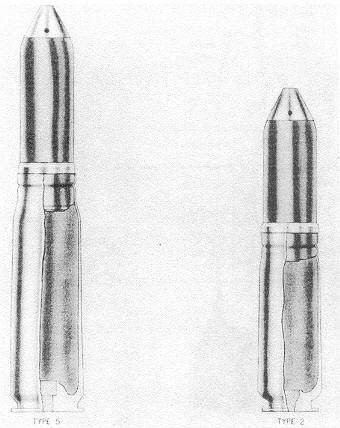

Figure 363 – 30-mm Ammunition.
