Type 94 - 7-cm (75-mm) High-Explosive Projectile
Weight of projectile, filled (TNT): 6.02 kg. (13.24 pounds).
Weight of filling: 0.81 kg. (1.78 pounds).
Filling:

Standard, TNT cast directly into lacquered cavity.

Alternate, (1) "ANGA" (ammonium nitrate, RDX).

Alternate, (2) "HEINEI" (trinitrophenetole).

Diameter at bourrelet: 75 mm (minus tol.).
Length over-all (without fuze): 303 mm (11 15/16 inches).
Length protruding from case: 264 mm (10 3/8 inches).
Width of rotating band: 10 mm.

Fuzing: Type 88 instantaneous nose fuze (gun type); type 88 short-delay nose fuze (gun type).

Weapons in which used:

Type 41 mountain gun (regimental gun): Case, 7 1/4 inches.

Type 94 mountain gun: Case, 11 9/16 inches.

Type 38 field gun group: Case, 11 9/16 inches.

Type 88 field A.A. gun: Case, 19 9/16 inches.

Type 88 field A.A. (special) gun: Case, 19 9/16 inches.

Type 90 field gun: Case, 16 11/16 inches.

Remarks: Two other designs essentially the same as the type 94 are known:

1. H.E., type 10 year.

2. H.E., type 90.

These have the same over-all length as the type 94, and have the same external from and general construction except for the following features:

1. The explosive cavity does not taper in the base as the type 94, but is straight-sided.

2. The slight boat-tail present on the type 94 is absent in the other designs.

3. Below the rotating band in the type 10-year design only, there is an annular groove into which the case is crimped.

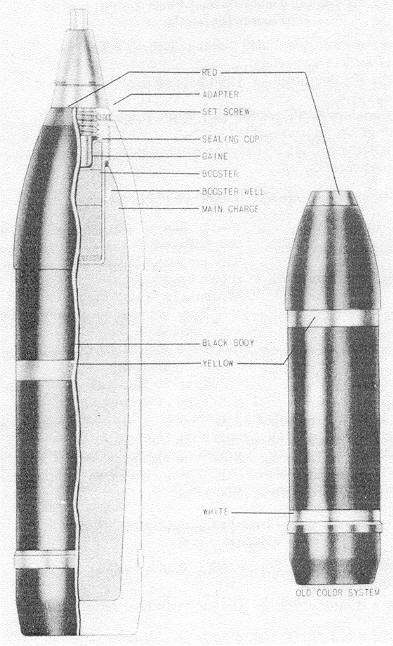

Figure 250 – Type 94 7-cm High-Explosive Projectile.
