Chapter 4 – Section 1
ARMY PROJECTILES
7-cm (75-mm) Design "A" High-Explosive Projectile
Weight of projectile, filled: 6.46 kg. (14.2 pounds).
Weight of filling: 0.625 kg. (1.38 pounds).

Filling: "ONA", a mixture of picric acid and dinitronaphtalene, in two preformed blocks.

Diameter at bourrelet: 75 mm (minus tol.).
Length over all (without fuze): No data.
Length protruding from case: No data.
Width of rotating band: No data.
Fuzing: Type 34d-year combination time and impact fuze.
Weapons in which used:

Type 41 mountain gun (regimental gun): Case, 7 1/4 inches.

Type 94 mountain gun: Case, 11 9/16 inches.

Type 38 field gun group: Case, 11 9/16 inches.

Remarks: This is an old projectile and is now obsolete.

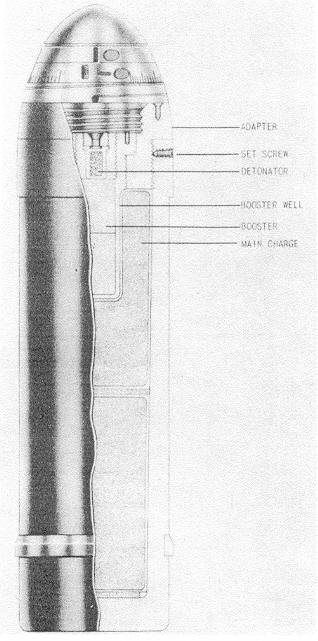

Figure 251 – 7-cm Design "A" High-Explosive Projectile.
