ARMY PROJECTILES
Type 90 - 7-cm (75-mm) H.E. Long-Pointed Projectile
Weight of Projectile, Filled (without fuze) (TNT): 6.17 kg. (13.62 pounds).
Weight of filling: 0.49 kg (1.08 pounds).
Filling:

Standard, TNT cast directly into a lacquered cavity (documentary).

Alternate "HEINEI" trinitrophenetole (recovered).

Indicated by painted on body.

Diameter at bourrelet: 75.0 mm (minus tol.).
Length over all (without fuze): 317.5 mm (12 1/2 inches).
Length protruding from case: 267.0 mm (10 1/2 inches).
Width of rotating bands:

Uper: 10.6 mm.

Lower: 9.6 mm.

Fuzing:

Type 88 instantaneous (gun).

Type 88 delay (gun).

Operation and employment: It is believed this projectile was designed primarily to adapt the type 88, 75 mm, high velocity A.A. gun to a dual-purpose field gun (i.e., for air and ground targets). The ballistic form of this projectile approximates that of the type 90 long-pointed A.A. projectile, when the A.A. time fuze is installed. The projectile is also used for other weapons, as shown below.

Weapons in which used:

Type 88 field A.A. (special), case, 19 9/16 inches.

Type 38 field gun group (four weapons), case, 11 9/16 inches.

Type 90 field gun, case, 16 11/16 inches.

Type 94 mountain gun.

Remarks: When this projectile is cased for use in the type 88 field A.A. gun (special), a reduced propelling charge is used. This reduced charge is indicated by a Roman numeral II stenciled on the case.

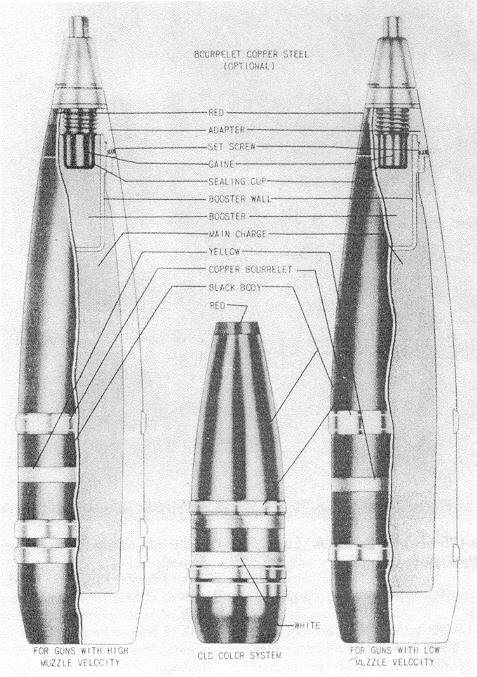

Figure 249 – Type 90 7-cm High-Explosive Long-Pointed Projectile.
