Type 90 - 7-cm (70-mm) H.E.-A,A. Long-Pointed Projectile
Weight of projectile, filled (TNT): 6.53 kg. (14.37 pounds).
Weight of filling: 0.385 kg. (0.85 pounds).

Filling: Standard, TNT, cast directly into lacquered cavity (recovered); alternate picric acid (documentary evidence).

Diameter at bourrelet: 75 mm (minus tol.).
Length over-all (without fuze): 257 mm (10 1/8 inches).
Length projecting from case: 202 mm (7 15/16 inches).
Width of forward rotating band: 9.5 mm.
Width of after rotating band: 9.5 mm.
Width of space between rotating bands: 6.5 mm.
Width of copper bourrelet: 14 mm.
Distance form base to after edge of bourrelet: 140 mm.

Fuzing: Type 89 long-pointed powder time fuze in nose. An auxiliary fuze armed by set-back and centrifugal force is used immediately below the time fuze.

Weapons in which used:

Type 11th-year 7.5-cm field A.A. gun.

Type 88 7-cm field A.A. gun, case, 19 9/16 inches.

Type 88 7-cm field A.A. gun (special), case, 19 9/16 inches.

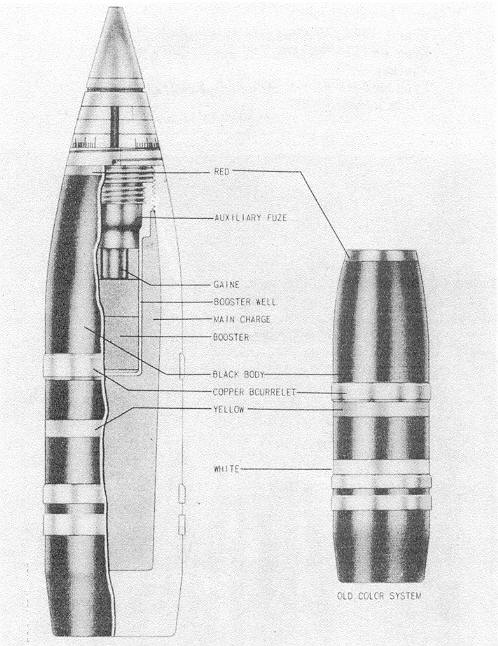

Figure 248 – Type 90 7-cm High-Explosive Antiaircarft Long-Pointed Projectile.
