| Japanese Explosive Ordnance – Bombs, Bomb Fuzes, Land Mines,
Grenades, Firing Devices and Sabotage Devices |
| Chapter 1 – Section 2 |
| Japanese Navy Bombs |
| No. 50 Ordinary Bomb Model 2 |
|
Over-all length: 90 inches. |
|
Length of body: 57 inches. |
|
Diameter of body: 17 3/4 inches. |
|
Thickness of wall: Nose, 4 inches; base, 1/2 inch. |
|
Material of wall: Steel. |
|
Type of suspension: Horizontal. |
|
Suspension lug: An eyebolt welded to a suspension band which fits around the bomb body. The band is positioned by two guide studs 180° apart on the bomb body. |
|
Color and markings: Gray over all. Green band around the nose and a brown band aft of it. |
|
Length of tail: 33 inches. |
|
Width of tail: 17 3/4 inches. |
|
Width of tail fins: 7 inches. |
|
Dimensions of tail struts: Length, 12 1/4 inches; width, 2 3/4 inches; thickness, 1/8 inch. |
|
Material of tail: Steel. |
|
Type of filling: Type 98 explosive separately cast in the body and tail. |
|
Weight of filling: 457.5 pounds. |
|
Total weight of bomb: 1080 pounds. |
|
Charge/weight ratio: 42 percent. |
|
Construction of body: The body is of one piece machined steel construction. The after end of the body is threaded internally to receive the tail assembly. |
|
The tail cone threads into the bomb body and is secured by two grub screws. |
|
Construction of tail: Four 5/32-inch steel tail fins are spot welded to the tail cone. They are braced by a single set of box-type struts. |
|

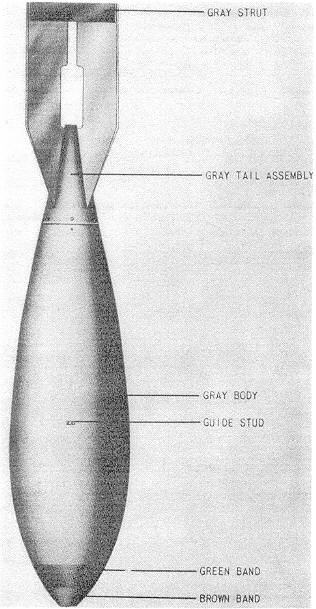

Figure 45 - No. 50 Ordinary Bomb Model 2. |
|
|
 |
