| Japanese Explosive Ordnance – Bombs, Bomb Fuzes, Land Mines,
Grenades, Firing Devices and Sabotage Devices |
| Chapter 1 – Section 2 |
| Japanese Navy Bombs |
| No. 25 Ordinary Bomb Model 2 |
|
Over-all length: 71 1/2 inches. |
|
Length of body: 44 1/2 inches. |
|
Diameter of body: 14 inches. |
|
Thickness of wall: 5/8 inch. |
|
Material of wall: Steel. |
|
Type of suspension: Horizontal. |
|
Suspension lug: Normal Navy suspension lug. |
|
Color and markings: Gray over all with a green band on the nose and green tail struts. New type color markings will be found. |
|
Length of tail: 27 inches. |
|
Width of tail: 14 inches. |
|
Width of tail fins: 4 3/32 inches. |
|
Dimensions of tail struts: Length, 10 inches; width, 2 1/8 inches; thickness, 1/16 inch. |
|
Material of tail: Steel. |
|
Type of filling: Picric acid, cast. Tail cone is filled. |
|
Weight of filling: 228 pounds. |
|
Total weight of bomb: 557 pounds. |
|
Charge/weight ratio: 41 percent. |
|
Construction of body: The body is constructed of one piece of machined forged steel. There is a threaded nose fuze pocket at the forward end. The after end of the body is threaded internally to receive a tail cone. The tail cone is explosive filled and has a fuze pocket at its apex. |
|
Construction of tail: Four fins are welded to the tail cone and braced by a single set of box-type struts. |
|

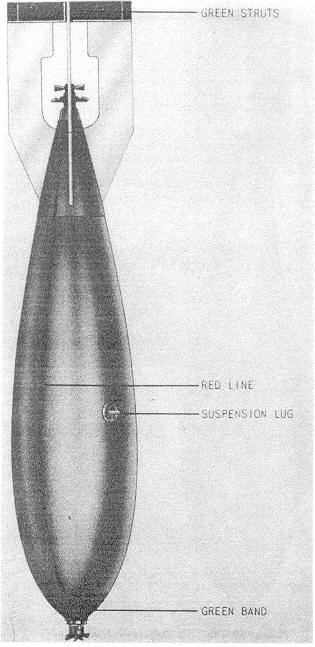

Figure 44 - No. 25 Ordinary Bomb Model 2. |
|
|
 |
