| GERMAN EXPLOSIVE ORDNANCE - PROJECTILES AND PROJECTILE FUZES |
| CHAPTER 5 |
| GERMAN PROJECTILES |
| A.P.C. PROJECTILE FOR 75-MM GUN |
| GERMAN NOMENCLATURE: 7.5-cm Pzgr. 39 FES (See fig. 386.) |
| WEAPONS: |
|
German antitank gun: 7.5-cm Pak 40, 40/1, 40/2, 40/3 (Sf). |
|
German tank gun: 7.5-cm KwK 40. |
|
German assault gun: 7.5-cm Stu.K. 40 (L/43). |
| PROJECTILE: |
|
Caliber: 75 mm. |
|
Kind: Shell. |
|
Type: A.P.C. |
|
Weight: 15.13 pounds (loaded and fuzed). |
|
Color: Black with red band. |
| CHARGE: |
|
Number: 92. |
|
Weight: 2.92 ounces. |
|
Kind: R.D.X./wax (90/10) pressed in blocks-wrapped in wax papper. |
| TRACER: Nr. 1 in fuze. |
| BOOSTER: PETN/Wax. |
| FUZE: |
|
Nomenclature: Bd.Z. 5103. |
|
Type: Base. |

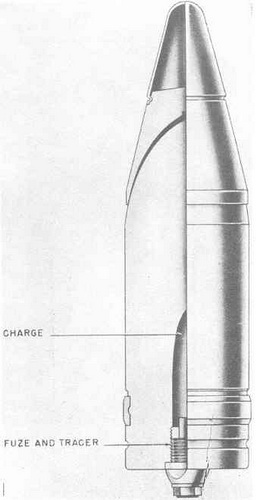

Figure 386 – A.P.C. Shell for 75-mm Gun, 7.5-cm Pzgr. 39 FES |
|
 |
