| GERMAN EXPLOSIVE ORDNANCE - PROJECTILES AND PROJECTILE FUZES |
| CHAPTER 5 |
| GERMAN PROJECTILES |
| HOLLOW CHARGE PROJECTILE FOR 75-MM GUN |
| GERMAN NOMENCLATURE: 7.5 cm Gr. 38 Hl/B. (See fig. 387.) |
| WEAPONS: |
|
German Antitank Gun: 7.5-cm Pak 40. |
|
German Antitank Gun: 7.5-cm Pak 40/1. |
|
German Antitank Gun: 7.5-cm Pak 40/2. |
|
German Antitank Gun: 7.5-cm Pak 40/3 (Sf). |
|
German Tank Gun: 7.5-cm KwK 40 |
|
German Assault Gun: 7.5-cm Stu.K. 40 (L/43). |
|
German Assault Gun: 7.5-cm Stu.K. 40 (L/48). |
|
German Light Airborne Gun (recoiless): 7.5-cm L.G. 40. |
| PROJECTILE: |
|
Caliber: 75 mm. |
|
Kind: Shell. |
|
Type: Hollow charge. |
|
Weight: 10 pounds (loaded and fuzed). |
|
Color: O.D. |
| CHARGE: |
|
Number: 91. |
|
Weight: 1.25 pounds |
|
Kind: Cyclonite/wax (95/5) pressed in blocks wrapped in waxed paper. |
| TRACER: None. |
| BOOSTER: None. |
| FUZE: |
|
Nomenclature: A.Z. 38. |
|
Type: P.D. |

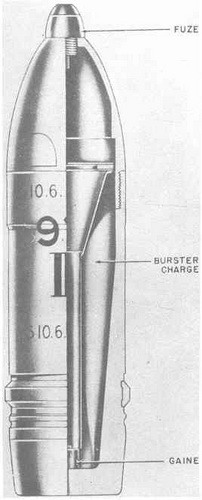

Figure 387 – Hollow Charge Shell for 75-mm Gun, 7.5-cm Gr. 38 Hl/B |
|
 |
