| GERMAN EXPLOSIVE ORDNANCE - PROJECTILES AND PROJECTILE FUZES |
| CHAPTER 5 |
| GERMAN PROJECTILES |
| H.E. PROJECTILE FOR 75-MM GUN |
| GERMAN NOMENCLATURE: 7.5-cm Sprgr. 2432 (h) (See fig. 385.) |
| WEAPONS: |
|
Dutch field gun: 7.5-cm F.K. 243 (h), model L 30. |
| PROJECTILE: |
|
Caliber: 75 mm. |
|
Kind: Shell. |
|
Type: H.E. |
|
Weight: 13.5 pounds (loaded and fuzed). |
|
Color: Green with black band at rotating band. |
| CHARGE: |
|
Number: T. |
|
Weight: 0.75 pounds. |
|
Kind: TNT |
| BOOSTER: Integral with fuze. |
| FUZE: |
|
Nomenvlature: Zünder Nr. 13 28. |
|
Type: P.D. |

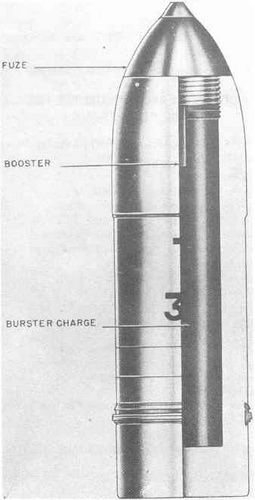

Figure 385 – H.E. Shell for 75-mm Gun, 7.5-cm Sprgr. 2432 (h) |
|
 |
