GERMAN UNDERWATERS ORDNANCE MINES |
Chapter 11 - INFLUENCE MINE UNITS - SVK AND LUFTWAFFE |
Section 2 - MAGNETIC UNITS |
M 1 UNIT AND MODIFICATIONS |

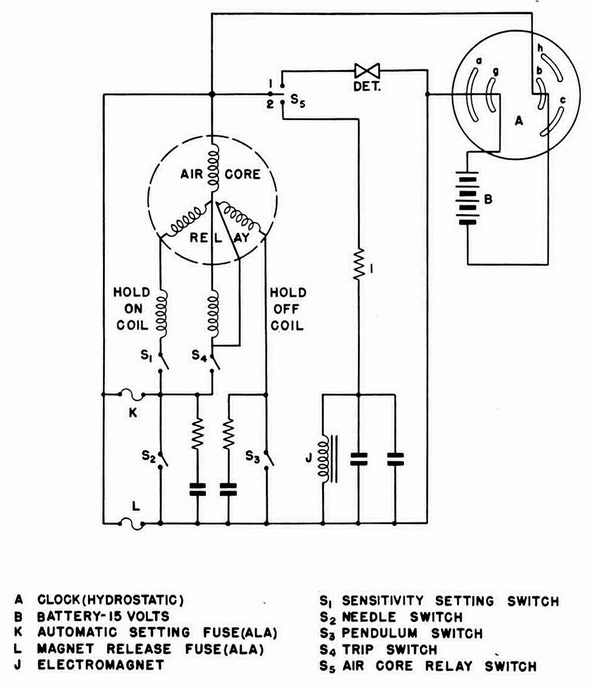

M 1 (1st Revision) Unit Circuit - Operation (Figure 139). |
Arming. Same as original unit except that if S2 does not open properly as the preset sensitivity is applied, the A.L.A. arm momentarily closes S4, completing the circuit through the hold-off coil and S2, opening S2. |
Normal Firing and Anti-Countermining. Same as the original M 1. |
|
