| GERMAN UNDERWATERS ORDNANCE MINES |
| Chapter 11 - INFLUENCE MINE UNITS - SVK AND LUFTWAFFE |
| Section 2 - MAGNETIC UNITS |
| M 1 UNIT AND MODIFICATIONS |
|

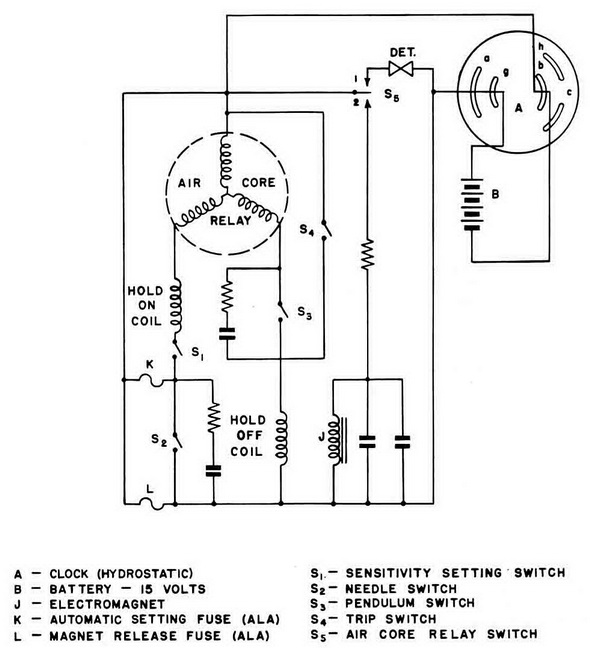

M 1 (2nd Revision) Unit Circuit - Operation (Figure 140). |
|
Arming. Same as the M 1, except that, as the preset sensitivity is applied, S4 closes momentarily even if S2 has opened properly; the purpose being to make doubly sure that S2 is open at the completion of the operation. |
|
Normal Firing and Anti-Countermining. Same as the original M 1. |
|
|
 |
