GERMAN UNDERWATERS ORDNANCE MINES |
Chapter 11 - INFLUENCE MINE UNITS - SVK AND LUFTWAFFE |
Section 2 - MAGNETIC UNITS |
M 1 UNIT AND MODIFICATIONS |

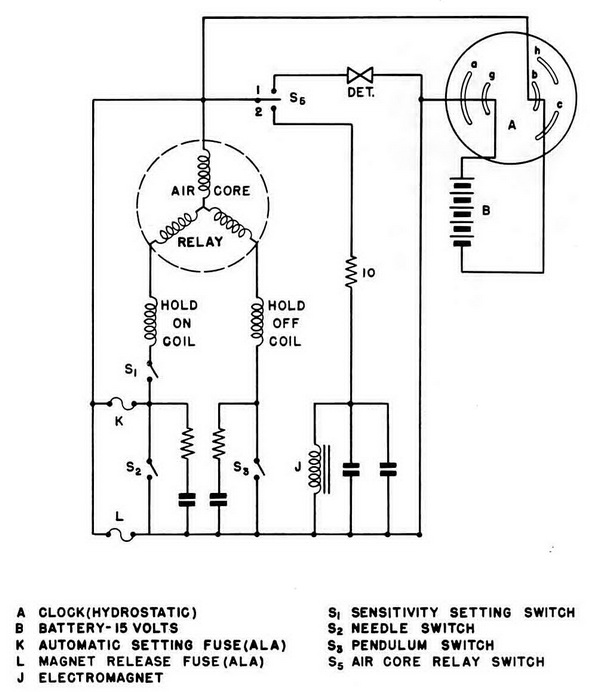

M 1 Unit Circuit - Operation (Figure 138). |
Arming. 5 1/2 minutes after the six-day clock starts, a-g closes, and b-c closes 11- 1/2 minutes later. B then blows L, unlocking the needle and starting A.L.A. Upon comple-tion of A.L.A., S2 closes and B blows K, allowing the preset sensitivity to be applied to the unit. As the preset sensitivity is applied, S2 opens and, upon completion of this ope-ration, S1 closes. The unit is now alive. |
Normal Firing. A firing actuation closes S2. This energizes the hold-on coil and the re-lay, closing S5 to contact No. 1 and completing the circuit through the detonator. |
Normal Anti-Countermining. A counter-mining shock closes S3. This energizes the hold-off coil and the relay, closing S5 to contact No. 2. The unit remains passive until S3 settles down. |
A countermining shock during A.L.A. closes S3. The hold-off coil and relay operates as above, energizing J, which holds the A.L.A. arm inoperative until S3 settles down. |
|
