U.S. EXPLOSIVE ORDNANCE |
PART 7 - GUIDED MISSILES AND FUZES |
Chapter 21 - MISSILES |
Section 2 - DESTRUCTORS |
M4 |
This destructor consists of a small charge of tetrytol mounted on a bracket with a Tail Mechanical Impact Fuze M121. The Fuze M121 uses the non-delay Primer Detonator M27 in this assembly. Connecting the fuze to the charge is a length of primacord. A spring-type lock nut secures the fuze to the bracket. |

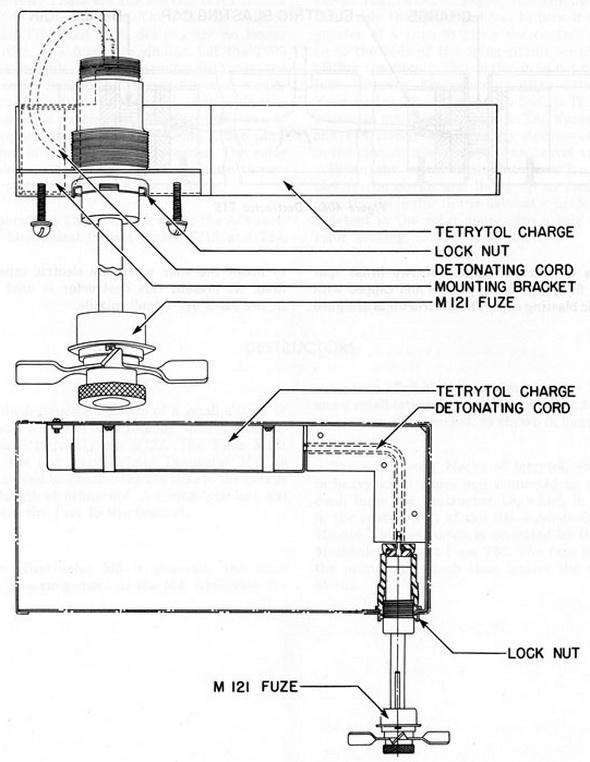

Figure 407. Destructor M4 and M8 |
|
