U.S. EXPLOSIVE ORDNANCE
PART 7 - GUIDED MISSILES AND FUZES
Chapter 21 - MISSILES
Section 1 - FUZES

T85 (Nose Mechanical Impact)

Missiles

"Felix"

Functioning

Instantaneous or 0.1 second delay

Armed condition

When arming spindle is out

Arming data

1,200 vane revolutions

General: This is an "elbow"-shaped fuze for use in guided missiles. At present it is used only in the nose of "Felx" VB-6. It is essenitally a Nose Mechanical Impact Fuze AN-M103 connected to the remotr windmill arming vanes by a flexible cable. The vane and gear assembly is the same as that used on the Tail Mechanical Impact Fuze M167. The fuze proper is like the AN-M103, except that is does not have the vane cap, safety discs, or arming screws.

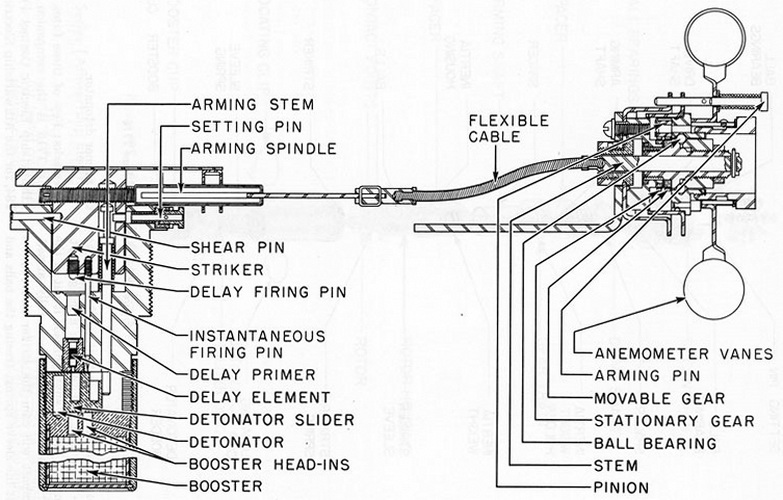

Figure 403. Nose Fuze T85
