BOMB FUZE DATA |
Part 2 - ARMY BOMB FUZES |
BOMB NOSE FUZE AN-M103A1 |
Characteristics |
Action - Impact, instantaneous, or 0.1-sec delay. |
Modification - M103 and AN-M103. M103 differs from the AN-M103 in that it required a longer air travel to arm. Fuze AN-M103 differs from Fuze AN-M103A1 in having inade-quate safety features. |
Status - M103 and AN-M103 - Obsolete. |
AN-M103A1 - Service |
Restriction on Use - M103 and AN-M103 - Not to be used by Naval activities. No res-triction on use of AN-M103A1. |
Air Travel to Arm - (Approximate) |
M103 - 1140 ft. for delay. |
1710 ft. for instantaneous. |
AN-M103, AN-M103A1 - 510 ft. for delay |
765 ft. for instantaneous |
Indication of Arming - If the arming discss are missing, the fuze is armed. |

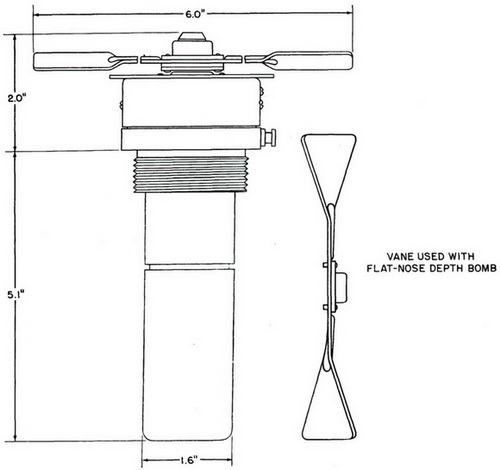

Figure 36. - Outline Drawing of Nose Fuze AN-M103A1 |
Bombs in Which Used |
All bombs* 100 lb. and over that receive a nose fuze except the Chemical Bomb AN-M47A2, Chemical Bomb M70, and Navy 100-lb. G.P. Bomb Mk 4 and Mods. |
*One auxiliary booster is required when used in Navy bombs. Must use special vane as-sembly when used with flat-nosed depth bombs. Special 4-in. diameter vane, required for use in the 90-lb. Frag Bomb M82, is supplied with fin-assemblies of bombs. |
Figure 35. - Nose Fuze AN-M103A1 |
Weight and Packing |
Weight of Fuze Fully Loaded - Approximately 3.7 lb. |
Weight of Booster - 1.9 oz. tetryl. |
Standard Packing - Twenty-five fuzes each in a metal container, are packed in a woo-den crate measuring 22.3 in. x 17.3 in. x 9.2 in. and weighing 132 lb. gross. |
