BOMB FUZE DATA |
Part 2 - ARMY BOMB FUZES |
BOMB TAIL FUZES M115, M116, M117 |
Characteristics |
Action - Impact, inertia firing. Interchangeable Primer Detonator M16A1 with 4 - 5 or 8 - 15 sec. delay. |
Modification - None |
Status - Service. |
Restriction on Use - 8 - 15 sec. delay to be used for shore targets, 4 - 5 sec. delay to be used for ship targets. |
Air Travel to Arm - Approximately 450 - 650 ft. |
Indication of Arming - If the distance between the eyelet and the vane-cup flange is greater than ½ in., the fuze should be considered armed. |

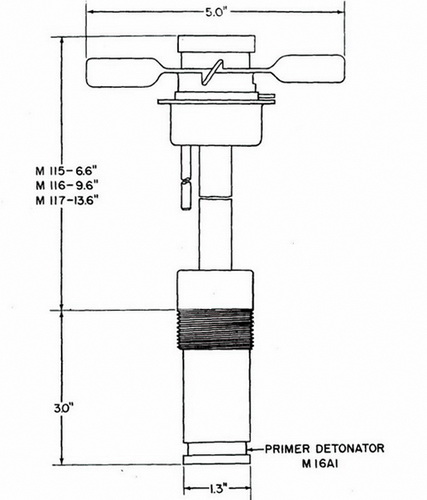

Figure 52. - Outline Drawing of Tail Fuzes M115, M116, M117 |
Bombs in Which Used |
M115 |
M116 |
M117 |

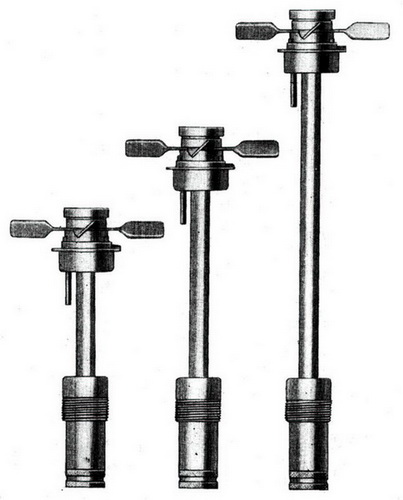

Figure 53. - Tail Fuzes M115, M116, M117 |
Weight and Packing |
Weight of Fuze Fully Loaded - (Approximate) |
M115 - 2.7 lb. |
M116 - 2.9 lb. |
M117 - 3.2 lb. |
Standard Packing - Twenty-five fuzes, each in a metal container, are packed in a woo-den crate whose dimensions are: |
Fuze |
Crate Size |
Weight |
M115 | 18.6 in. x 14.8 in. x 15.1 in. | 119 lb. |
M116 | 21.6 in. x 14.8 in. x 15.1 in. | 131 lb. |
M117 | 25.6 in. x 14.8 in. x 15.1 in. | 148 lb. |
