| BOMB FUZE DATA |
| Part 2 - ARMY BOMB FUZES |
| BOMB TAIL FUZE M106A2 |
|
Characteristics |
| Action - Impact, delay. |
| Modification - M106, M106A1, and M106A2 differ only in delay times as shown below. |
|
M106 - 4 - 5 sec. delay |
|
M106A1 - 8 - 11 sec. delay |
|
M106A2 - 4 - 5 sec. delay |
| Status - Obsolete - Replaced by M112 and M115 series fuzes. |
| Restriction on Use - Not to be used by Naval activities. |
| Air Travel to Arm - None required. |
| Indication of Arming - Safety pin missing. |
|
|
|

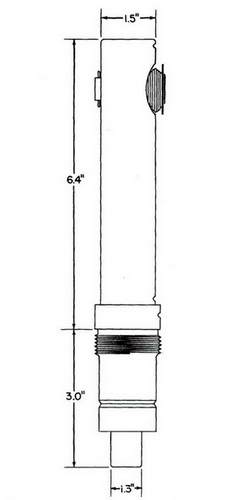

Figure 42. - Outline Drawing of Tail Fuze M106 |
|
Bombs in Which Used |
|
All Army and Army-Navy Standard G.P., S.A.P., and A.P. Bombs. |
|
|
|
Figure 43. - Tail Fuze M106 |
|
Weight and Packing |
| Weight of Fuze Fully Loaded - Approximately 2.4 lb. |
|
Standard Packing - Fifty fuzes each in a metal container, are packed in a wooden crate measuring 24.4 in. x 10.7 in. x 11.4 in. and weighing 157 lb. gross. |
|
|
