| BOMB FUZE DATA |
| Part 2 - ARMY BOMB FUZES |
| BOMB NOSE FUZE M108 |
|
Characteristics |
| Action - Instantaneous upon impact. |
|
Modification - Early lots of Fuze M108 did not have a safety block inserted between the striker head and fuze body. |
| Status - Obsolete. |
| Restriction on Use - Not to be used by Naval activities. |
| Air Travel to Arm - None required. |
| Indication of Arming - Arming pin and safety block missing. |
|
|
|

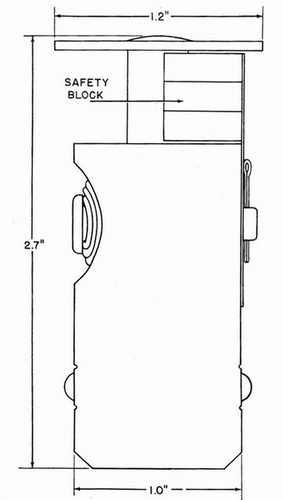

Figure 44. - Outline Drawing of Nose Fuze M108 |
|
Bombs in Which Used |
|
|
|
Figure 45. - Nose Fuze M108 |
|
Weight and Packing |
| Weight of Fuze Fully Loaded - Approximately 0.5 lb. |
|
Standard Packing - Two hundred fuzes, each in a metal container, are packed in a wooden crate measuring 17.8 in. x 16.2 in. x 8.2 in. and weighing 131 lb. gross. |
|
|
