| BOMB FUZE DATA |
| Part 2 - ARMY BOMB FUZES |
| BOMB NOSE FUZE AN-M104 |
|
Characteristics |
| Action - Instantaneous upon impact. |
| Modification - M104 and AN-M104A1. No appreciable differences. |
| Status - Obsolete - Replaced by AN-M120A1. |
| Restriction on Use - See page 8 for special precautions. |
| Air Travel to Arm - None required. Arms 2.5 sec. after arming pin jumps out. |
| Indication of Arming - Delayed arming plug missing. |
|
|
|

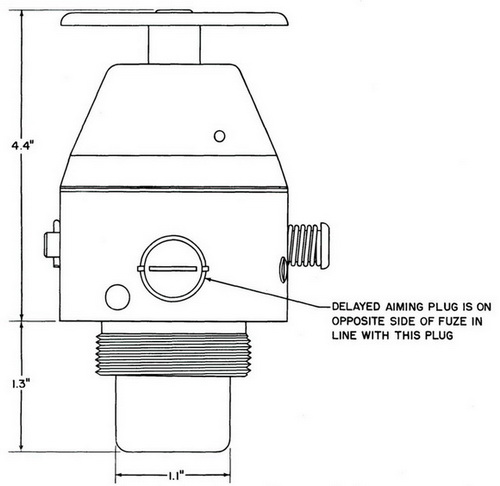

Figure 40. - Outline Drawing of Nose Fuze AN-M104 |
|
Bombs in Which Used |
|
23-lb. Para-Frag. Bomb AN-M140 and Mods |
|
23-lb. Para-Frag. Bomb AN-M72 and Mods |
|
|
|
Figure 41. - Nose Fuze AN-M104 |
|
Weight and Packing |
| Weight of Fuze Fully Loaded - Approximately 1.2 lb. |
| Weight of Booster - 0.7 oz. tetryl. |
|
Standard Packing - Fifty fuzes each in a metal container, are packed in a wooden crate measuring 17.2 in. x 16.3 in. x 11.4 in. and weighing 98 lb. gross. |
|
|
