JAPANESE UNDERWATER ORDNANCE |
Chapter 1 - JAPANESE MINES |
Section 5 - MINE TYPE JD |
Two types of this mine are known to exist, both designated by the Japanese as "Mark 2 Explosive Hook". Only the "Mark 2 Explosive Hook, Modification 1" has been recovered. The "Mark 2 Explosive Hook" has been reported from intelligence sources. |
The intended use of the JD is an explosive grapnel for minesweeping. It has been used, however, as a controlled beach mine. When used as a grapnel it is towed behind a ship, and when it snags a mine mooring cable, the Explosive Hook is fired electrically from the ship. When used as a controlled mine it is planted on beaches and approaches to beaches and is fired electrically from an observation post. |
General characteristics of the mine are as follows: |
Case |
Shape – Cylindrical, 8" in diameter, with rounded ends. Fitted with 4 projecting prap-nel arms with a maximum span of 11".5, and a towing bracket on each end. |
Length – Body 10"; Overall 25". |
Color – Black. |
Mateial - Steel. |
Charge – 8 to 19 lbs. cast Shimose, or granular Type 88 explosive. |
Total Weight – 28 to 39 lbs. |
External Fittings |
Detonator Carrier – 1".5 in diameter in the middle of the body |
Filling Holes – One on each end, 2".5 in diameter. |
Pad Eye – One, on the top center line next to the detonator-carrier keep ring. |
Towing Swivels – Two, one attached to each towing bracket. |
Operation |
This mine is armed during assembly. When used as a grapnel, a sweep wire serves as a towing cable and proper depth is maintained by suspending the mine from a mine-sweeping float on a float pendant. The mine is electrically connected to the towing ship by a rubber covered cable stopped off on the towing cable. When an object is snared, an observer on the towing boat fires the charge electrically. The only differences bet-ween the Mark 2, Modification 1 and Mark 2 is that the latter fires both electrically and automatically when an additional tension of 55 lbs. is put on the mine. |
Safety Precautions |
Neither type has any disarming features. |

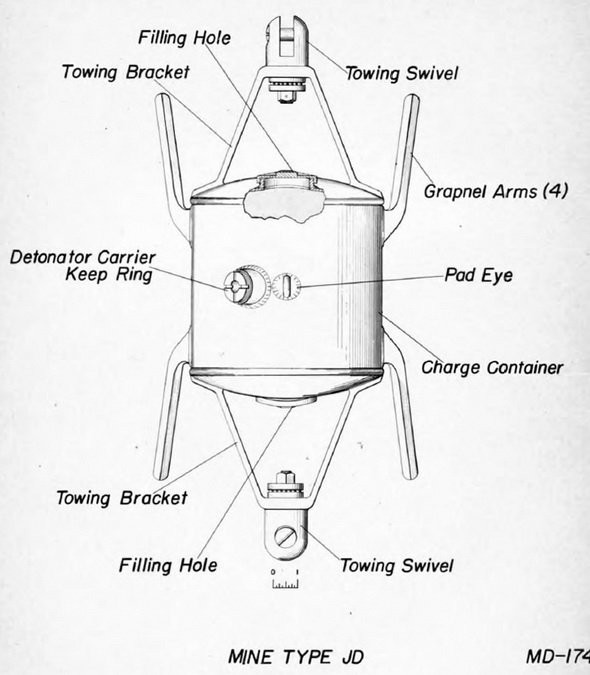

Figure 10 – Mine type JD. |
|

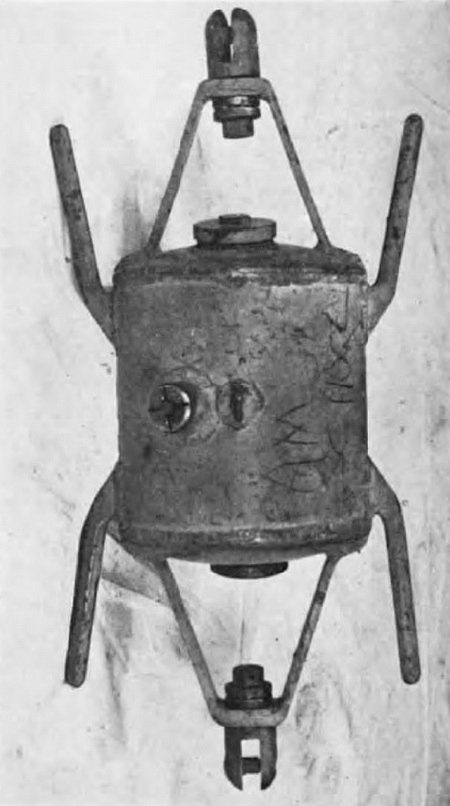

Figure 11 – View of Type JD "the explosive hook". |
|
