JAPANESE UNDERWATER ORDNANCE |
Chapter 1 - JAPANESE MINES |
Section 4 - MINE TYPE JC |
A moored, contact mine laid by surface craft as a defensive weapon against either submarines or surface craft, and designated by the Japanese as "Mark 5, Modification1". The maximum depth in which it can be planted is 689 feet; minimum depth is approxima-tely 55 feet. The maximum depth of the mine case when moored is 164 feet. The JC, found in the Central Pacific, has had limited use. |
A description of the case and external fittings follows: |
Case |
Shape – Spherical, 32".7 in diameter |
Color – Black. |
Mateial - Steel. |
Charge – 182 lbs. block-fitted Shimose. |
Total Weight – 456 lbs. |
External Fittings |
Horns – Four, electrochemical, 90° apart around the upper hemisphere. |
Cover Plate – 15" in diameter, in the center of the upper hemisphere, secured by 18 bolts. |
Lifting Lugs – Three, equally spaced around the upper hemisphere near the edge of the cover plate. |
Base plate – 10".5 diameter in the center of the lower hemisphere. |
Support Legs – Four, equally spaced around the lower hemisphere near the base-plate pocket. |
Anchor – Not recovered |
Mooring Cable – 525' of 0".35 diameter cable. |
Operation |
Details of neither the anchor nor the depth-taking mechanism are known. Shortly after the mine is launched, however, two switches close to arm it. First, tension on the mooring safety switch; second, dissolution of a soluble plug allows a spring-loaded arming switch in the cover plate to close. The mine is then armed. |
The mine fires when one of the horns is bent sufficiently to break its glass vial, allo-wing an electrolyte to run into a battery cup and form a small cell. The resultant current fires the detonator. |
Safety Precautions |
The mooring safety switch is designed to open and disarm the mine when tension is released from the mooring spindle. The feature, however, is not dependable. |

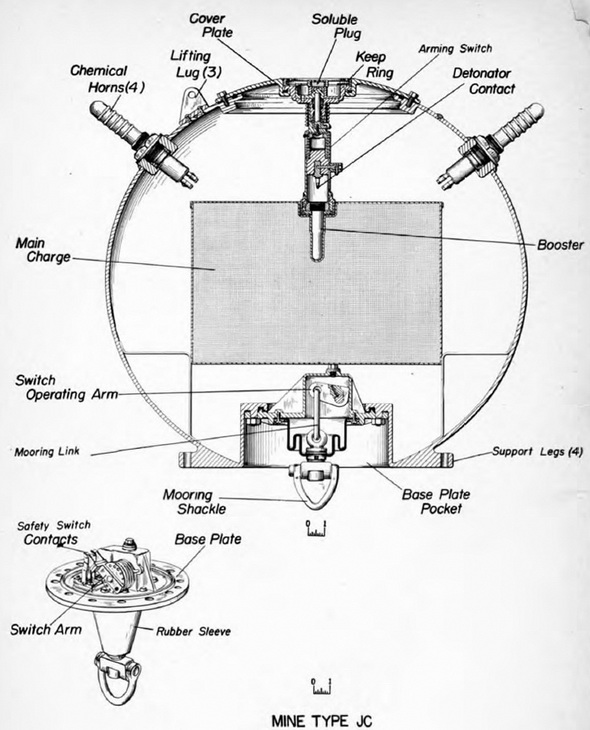

Figure 8 – Cross section of the JC mine. |
|

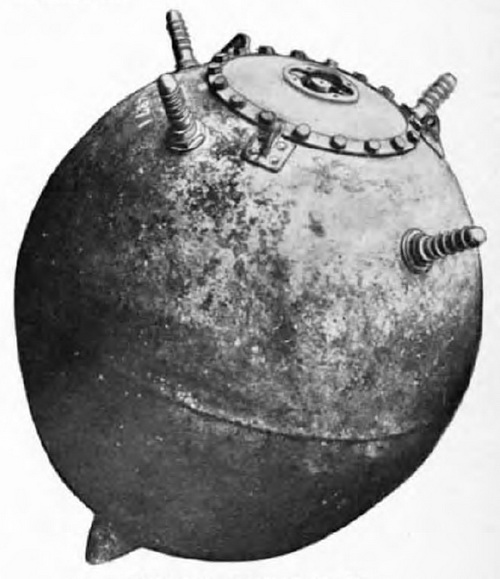

Figure 9 – Mine type JC |
|
