GERMAN CHEMICAL WARFARE MATERIAL |
Part IV - SPECIAL EQUIPMENT |
Section F - DUST RESPIRATORS |
IV–F–6 |
FILTER, DUST, 545 |
Feinstaubfilterteil 545 |
PURPOSE: |
These filters are used to give the respiratory system protection against dust; they are used in connection with a Dräger dust mask. |
MARKINGS: |
The strip of white paper wrapped about cardboard container is marked: "2 Stück Fein-staubfilterteil 545". |
DESCRIPTION: |

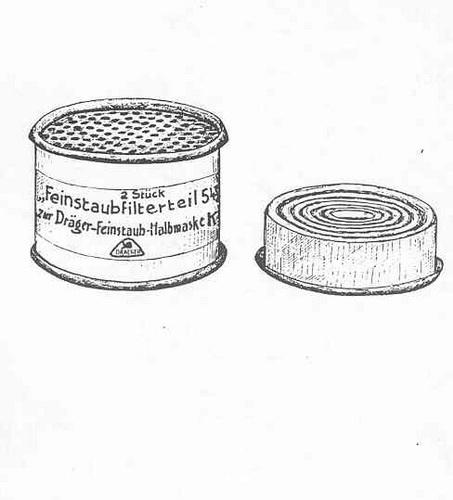

This item consists of 2 pleated paper filters with perforated metal covers fitted into a cardboard cylinder 2.5 inches high. The two filters fit into the end of the cylinder and are held in place by a strip of gummed paper. These filters are replacements for the filters used in Dräger Dust Respirator, IV–F–4, and similar dust respirators. |
IV–F–6 |
Filter, Dust, 545 |
Feinstaubfilterteil 545 |
