| GERMAN CHEMICAL WARFARE MATERIAL |
| Part IV - SPECIAL EQUIPMENT |
| Section D - ANIMAL PROTECTIVE EQUIPMENT |
|
IV–D–16 |
| GOGGLES, HORSE, 41 |
|
Pferdebrillen 41 |
| PURPOSE: |
|
These goggles protect the eyes of horses against CW agents. |
| MARKINGS: |
|
There are no markings of identification value. |
| DESCRIPTION: |
|
The goggles consist of a pair of convex eyepieces made of transparent plastic, joined by a gray, light cloth headstrap 0.8 inches wide, which is adjusted by means of a sliding buckle. The goggles are fitted with a side straps and hooks and eyes for fastening the goggle to the headharness. |
|
The eyepieces measure 1.8 inches deep, and have a maximum diameter of 3.4 inches. A dark brown leather pad is sewed around the edge of each eye-piece. One eyepiece has a blue mark, and the other a red mark on the transparent plastic next to the leather pad. |
|
IV–D–16 |
|

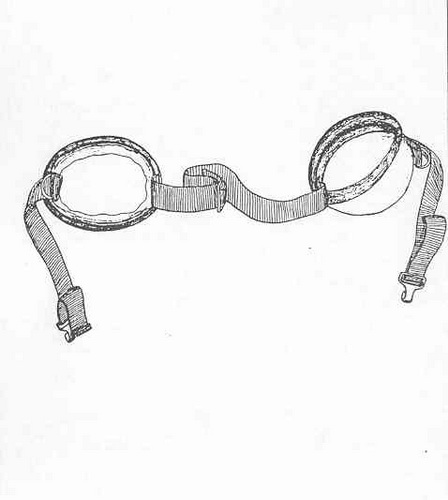

Goggles, Horse, 41 |
| Pferdebrillen 41 |
|
|
|
|
