GERMAN CHEMICAL WARFARE MATERIAL |
Part IV - SPECIAL EQUIPMENT |
Section C - GAS DETECTION AND WARNING EQUIPMENT |
IV–C–24 |
KIT, DETECTION AND SAMPLING, GAS |
PURPOSE: |
This kit is used to detect contamination by chemical agents, to collect samples for chemical analysis, to post gas warning cards over the contaminated area, and to obtain intelligence data. |
MARKINGS: |
There are no markings of identification value. |
DESCRIPTION: |

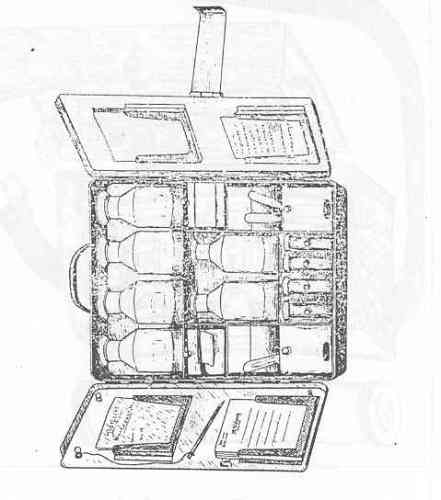

The kit consists of an aluminum chest, with leather carrying straps attached to the back side, a metal carrying handle on the top, and a clamp fastener for the lid. The di-mensions of the case are 5.75 x 14 x 17.75 inches. |
The case is constructed of 14 gauge sheet aluminum and is parttioned into 7 com-partments, each having spring clips to hold the contents in place; the partitions and clips are also made of sheet aluminum. The case opens from the front by means of 2 hinged doors. Four aluminum racks are found on the inside of the doors, containing a list of kit contents, and instruction and data cards; the lower left-hand rack also has a pencil clip. Six sample bottles are found in the upper and central compartments, each being held in place by both a semicircular clip and a leaf spring clip. Each bottle measures 5.9 inches in height and 2.75 inches in diameter and is fitted with a ground glass stopper. The lower right and left-hand compartments hold aluminum spoons and spatulas. |
The right and left central compartments each hold an aluminum container held in place by a spring clip. These containers hold Sudan Red indicator paper, which is dispensed through a slot in the upper front side of the container. A helical spring riveted to the bottom, and to a movable follower plate keeps the paper pressed against the removal slot at the top. |
The bottom central compartment contains 4 aluminum cans 3.6 inches in height and 1.2 inches in diameter. Each can has a perforated shaker cap and is closed by another slip-on cap. These cans contain the pink or ochre detector powder, item IV–C–6. |
IV–C–24 |
Kit, Detection and Sampling, Gas |
