GERMAN CHEMICAL WARFARE MATERIAL |
Part IV - SPECIAL EQUIPMENT |
Section C - GAS DETECTION AND WARNING EQUIPMENT |
IV–C–20 |
TUBE, DETECTOR CO |
Prüfröhrchen |
PURPOSE: |
These tubes are used to detect presence of carbon monoxide in the atmosphere. |
MARKINGS: |
The tubes have no markings of identification value. |
DESCRIPTION: |
The tubes are made of thin glass, sealed at both ends; one end tapers to a point, and the other end is rounded. They are 4.2 inches long and 0.4 inches in diameter. |
The contents of the tube (from the pointed end to the rounded one) are as follows: glas wool, impregnated silica gel, white silica gel, and glass wool impregnated with a light blue substance. |
The tubes are packed in the containers described under Kit, Testing, Field, CO, item IV–C–21. |

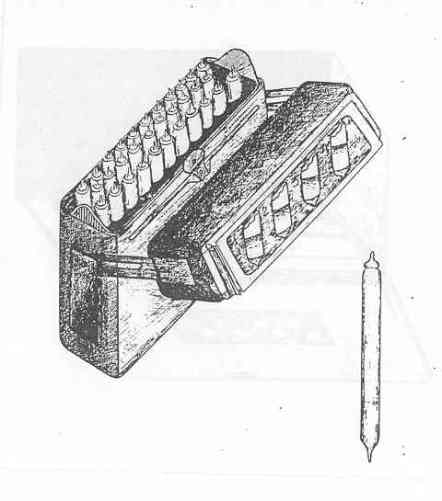

IV–C–20 |
Tube, Detector, CO |
Prüfröhrchen für Kohlenoxyd |
