GERMAN CHEMICAL WARFARE MATERIAL |
Part IV - SPECIAL EQUIPMENT |
Section C - GAS DETECTION AND WARNING EQUIPMENT |
IV–C–3 |
ACCESSORIES, PUMP, POWDER, DETECTOR |
Ersatzteile für Spürpumpe |
PURPOSE: |
The purpose of this kit is to supply accessories and spare parts for the Detector Pow-der Pump (Spürpumpe). |
MARKINGS: |
The cover of this kit has the white stencilled marking: "Ersatzteile für Spürpumpe". |
DESCRIPTION: |
The kit is a field gray wooden box, 6.3 x 5.8 x 2.0 inches and has a gross weight of 1.9 pounds. The box has a removable slide - type lid located in grooves cut in the sides of the box. A swivel hook and eyelet fastener lock the lid in the closed position. The in-terior of the case is divided by wooden partitions into nine compartments. |
The parts found in the kit are as follows: |
1. Hexagonal nuts for spray tank assembly |
2. Seal washers |
3. Adapters |
4. Pump nozzle washers |
5. Screw for spray screen assembly |
6. Bumper washer |
7. Locking nuts |
8. Packing washers |
9. Spürpumpe wrenches |

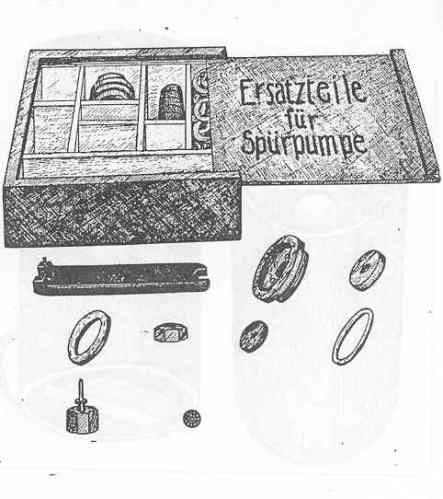

IV–C–3 |
