GERMAN CHEMICAL WARFARE MATERIAL |
Part IV - SPECIAL EQUIPMENT |
Section B - COLLECTIVE PROTECTOR EQUIPMENT |
IV–B–10 |
CANISTER, GAS, G-2.4 |
Gasfilter 2,4 |
G 2,4 |
PURPOSE: |
The purpose of this canister is to filter toxic gases from the air drawn into collective protector installations; it is used in conjunction with a smoke filtering canister. |
MARKINGS: |
The side of the canister is marked in white: "G 2,4". On Auer made canisters, the marking frequently omits the comma between the "2" and the "4". |
DESCRIPTION: |
The canister is a short cylinder with slightly convex bottom and top; it is painted dark green. The overall diameter is 23.3 inches and the overall height, 11 inches, which inclu-de the two screw necks, both male threads, 4.3 inches in diameter. Both necks have screw caps to close them when the canister is not in use. |
The canister has two layers of charcoal separated by a fiber gauze; the upper layer is 3.1 inches thick and the bottom, 2.3 inches thick. The capacity of the canister is 2.4 cubic meters of air per minute. |

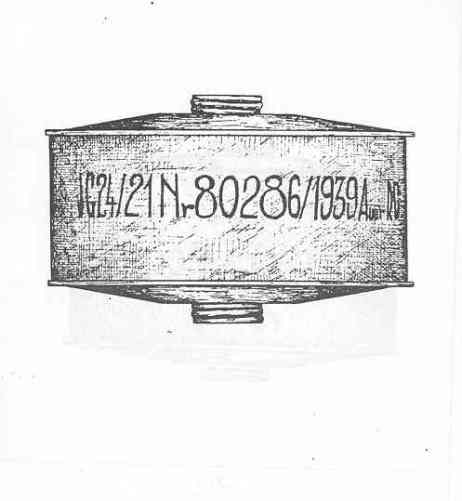

IV–B–10 |
Canister, Gas, G-2.4 |
Gasfilter 2,4 |
G 2,4 |
