GERMAN CHEMICAL WARFARE MATERIAL |
Part III - PERSONAL EQUIPMENT |
Section E - OXYGEN BREATHING EQUIPMENT |
III–E–3 |
SET, BREATHER, HSS |
Heeres-Sauerstoff-Schutz-Gerät |
HSS |
PURPOSE: |
This early type of breather set serves to supply the user with oxygen when he is an a deficient atmosphere due to fires, explosions, or high concentrations of agents in confin-ed quarters. |
MARKINGS: |
The inside of the canvas flap which fits around the body has the following marking printed on the backside: Heeres-Sauerstoff-Schutzgerät. |
DESCRIPTION: |

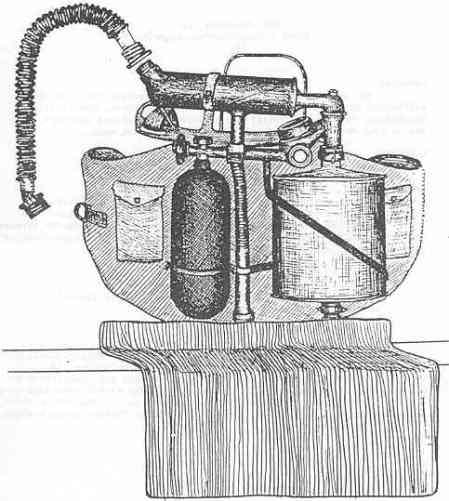

This set dates back to 1916 and is no longer manufactured. It is fastened to a canvas square metal plate which is fitted with canvas flaps, bands and straps for carrying the apparatus in front of the body. It consists of the following parts: |
1. | Mouthpiece. | |
2. | Single rubber connecting hose. | |
3. | Valve enclosure. | |
4. | Inhalation valve. | |
5. | Exhalation valve. | |
6. | Oxygen cylinder. | |
7. | Main valve on oxygen cylinder. | |
8. | Pressure Gauge. | |
9. | Press button for additional supply quantity. | |
10. | Colling tube. | |
11. | Alkali cartridge. | |
12. | Breathing sack. |
The valve enclosure contains the inhalation and exhalation tubes which in turn con-tain the valves thereby enabling the use of only one connecting hose to the facepiece or mouthpiece. When using the mouthpiece, a noseclip is fastened on the nose to close the nostrils. |
The hose can be attached to the standard facepiece in which the valves are removed and the outlet valve opening covered with a screw cap. |
The oxygen supply is enough for 70 minutes medium work; the equipment also inclu-des a hypodermic syringe for injecting lobelin, in case of filling. The breathing bag hangs below the sodium hydroxide cartridge. |
III–E–3 |
Set, Breather, HSS |
Heers-Sauerstoff-Schutz-Gerät |
HSS |
