GERMAN CHEMICAL WARFARE MATERIAL |
Part III - PERSONAL EQUIPMENT |
Section C - GAS MASK CARRIES |
III–C–2 |
CARRIER, GM, S-Mask |
Tragbüchse |
PURPOSE: |
The purpose of the carrier is to provide an individual container for the assembled "S" gas mask and accessory equipment. |
MARKINGS: |
Some of the carriers are stamped on the cover with the "AUER" trademark. There are no identifying markings present. |
DESCRIPTION: |

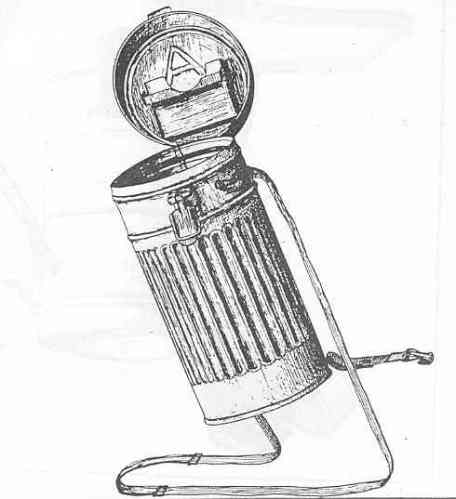

The carrier is a green painted, ribbed, sheet metal cylinder, measuring 10.1 inches in overall height and 4.7 inches in diameter. There is a rectangular compartment under the cover for anti-dim discs, and an eyepiece cleaning cloth with a wire spring holder at the base. The hinged cover, which is 1.7 inches deep, is locked by a snap spring catch. On the outside of the carrier are either three or four metal loops soldered to the sides; the top two or three taking the web carrying strap, and the bottom loop the webbing and clasp attachment for fastening the carrier to the wearer's belt. |
III–C–2 |
Carrier, GM, S-Mask |
Tragbüchse |
