The purpose of this cart is to serve as highly mobile transportation for a case of 4 complete flamethrowers, model 41, with projectors 41 W or 41 P, and spare parts and accessories.

There are no markings of identification value.

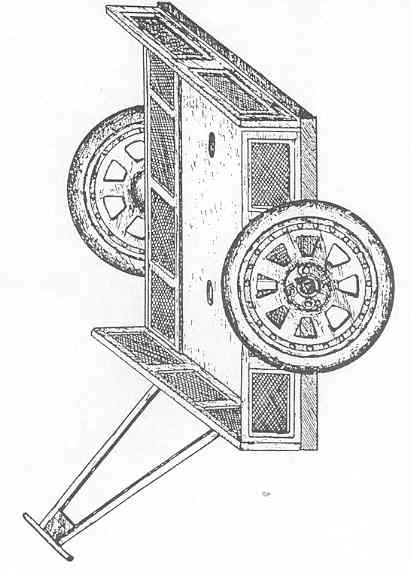

The cart is metal and has two spoked wheels which may or may not have solid or in-flated rubber tires. The inside of the cart measures 33 x 52 inches and the sides which may be folded down are eight inches high. The pulling handle measu-res 45 inches from the cart to the pulling crossbar. The cart is intented to carry one case of flamethrowers of the "41" type and is to be drawn by one or two men.
