GERMAN CHEMICAL WARFARE MATERIAL |
Part I - GROUND WEAPONS AND AMMUNITION |
Section P - FLAMETHROWERS AND ACCESSORIES |
I–P–6 |
BENCH, REPAIR, FLAMETHROWER, 41 P & 41 W |
Werkbank für Flammenwerfer 41 |
PURPOSE: |
The purpose of these benches is to supply mobile repair shops and spare parts and accessories for the "41" flamethrower and the projectors. |
MARKINGS: |
There are no markings of identification value. |
DESCRIPTION: |

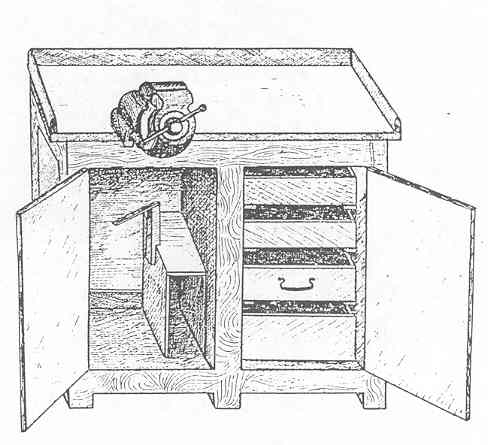

The "41 P" bench is made of wood and painted yellow; it has a steel vise on top and two compartments with swinging doors. The left-hand compartment contains the fuel tank, nitrogen tank, tank carrier, fuel hose, and a few accessories; in the right-hand compartment, there are three shallow drawers and one deep one containing accessory and repair parts for the "41" flamethrower and the "41 P" projector. |
The bench measures 20 x 35 x 41 inches. The "41 W" model bench is the same size but is painted black or green and differs also in that it contains a complete "41" flame-thrower with the "41 W" projector. The accessories and spare parts differ also to fit the "41 W" model projector. |
I–P–6 |
Bench, Repair, Flamethrower, 41 P & 41 W |
Werkbank für Flammenwerfer |
