GERMAN CHEMICAL WARFARE MATERIAL |
Part I - GROUND WEAPONS AND AMMUNITION |
Section O - SMOKE SIGNALS AND FLARES |
I–O–6 |
SIGNAL, SMOKE, LANDING, YELLOW |
Landungsrauchzeichen |
PURPOSE: |
This item is most likely used for signaling aircraft from the ground. |
MARKINGS: |
The label is marked: "Landungsrauchzeichen". |
DESCRIPTION: |
The container is a yellow painted aluminum cylinder measuring 1.8 inches in diameter and 3.7 inches high. In the center of one end is fitted the standard pull igniter. The gum-med label on the body of the cylinder gives the directions for use besides the above Ger-man name. The signal produces a cloud of yellow smoke for three minutes. |

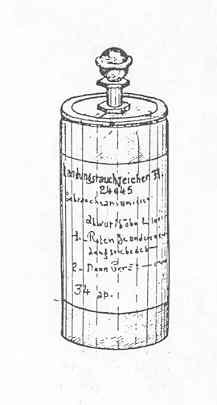

I–O–6 |
Signal, Smoke, Landing, Yellow |
Landungsrauchzeichen |
