| U.S.N.B.D. - UNITED STATES - BOMBS AND FUZES; PYROTECHNICS |
| SECTION IV - PYROTECHNICS |
| PART I - AIRCRAFT PYROTECHNICS |
|
DATA: |
U.S. - NAVY FLARE |
|
|
|
AIRCRAFT |
|
|
OVERALL LENGTH |
37.75 in. | |
|
DIAMETER OF CASE |
5.4 in. | |
|
WEIGHT |
30 lb. | |
|
BURNING TIME |
3 min. | |
|
LIGHT INTENSITY |
750,00 candle |
|
|
|
power | |
|
COLOR |
Pale Yellow |
|
|
EFFECTIVE RELEASE ALTITUDE |
3500 - 15,000 ft. | |
|
TERMINAL VELOCITY |
||
|
(Before ignition) |
225 ft/sec. | |
|
RATE OF FALL |
||
|
(After ignition) |
450 ft/min. |
|
USE: |
|
To illuminate an area for reconnoitering, bombing, or landing. |
|
DESCRIPTION: |
|

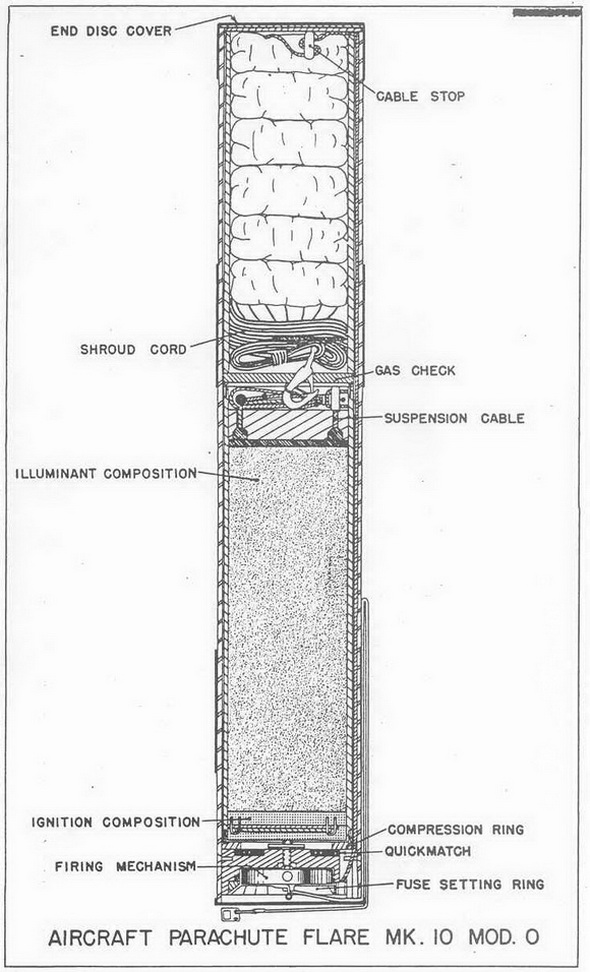

The Aircraft Parachute Flare, Mark 10 Mod 0 hat the same dimensions as the Aircraft Parachute Flare Mark 6 and Mods. The internal construction is similar to the Aircraft Parachute Flare Mark 5 and Mods except that the Mark 10 Mod 0 has a metal suspens-ion cup to which the suspension cable and pyrotechnic candle is fastened, and the Mk 5 and Mods has a wooden suspension base block. |
|
OPERATION: |
|
The operation of this flare is similar to the Aircraft Parachute Flare, Mk 5 and Mods. See page 297. |
|
REMARKS: |
|
Though this flare has a specified light intensity of 750,000 candle power, tests have shown that it has a light intensity of 800,000 candle power. In the future it may be manufactured so as to have a light intensity of approximately 1,000,000 candle power. |
|
|
 |
