| MEDIUM CAPACITY BOMBS |
|
|
|
|
|
|
BRITISH BOMB |
|
|
FUZING: |
250 LB. M.C. |
|
|
Nose Pistol No. 27, 42, or 44. |
||
|
Tail Pistol No. 28, 30, or 37. |
||
|
COLOR & MARKINGS |
Dark green overall; ½" red | |
|
|
band around nose, 1" light |
Mks I & II |
|
|
green band around base of |
|
|
|
ogive |
(Service) |
|
TAIL NO. |
No. 2 Mks I or II |
|
|
OVERALL LENGTH |
55.5" |
|
|
BODY LENGTH |
27.5" |
|
|
MAX. BODY DIAMETER |
10" | |
|
WALL THICKNESS |
0.3" | |
|
TAIL LENGTH |
27" (approx.) | |
|
TAIL WIDTH |
10" | |
|
TOTAL WEIGHT |
225 lbs. (approx.) | |
|
CHARGE/WEIGHT RATIO |
50% (approx.) |
|
|

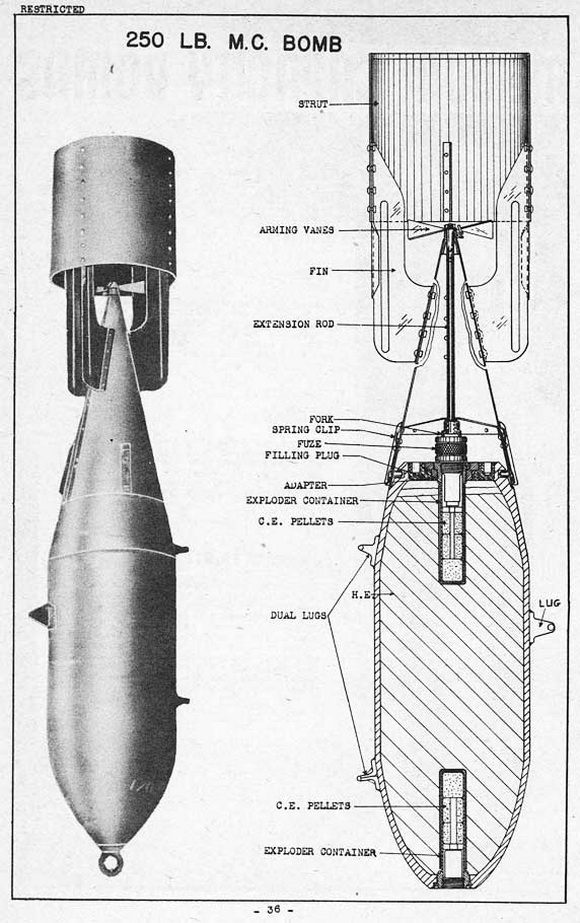

BODY CONSTRUCTION: |
|
Solid drawn or rolled steel barred. Exploder containers screw into nose and base fill-ing plug (male base plate). Parallel sides with ogival nose and slight rear taper, similar in construction to U.S. General Purpose Bombs. |
|
TAIL CONSTRUCTION: |
|
Cylindrical tail strut secured to tail cone by four fins. Secured to body by four spring clips, which engage in slots in the tail end of the body. A reach rod through the tail cone, having arming vanes attached to the aft end, engages the arming fork in the tail pistol. |
|
SUSPENSION: |
Mk I – |
Single suspension lug welded to bomb body. |
| Mk II – |
Dual lugs welded to case for suspension from U.S. aircraft in addition to single lug. |
|
EXPLOSIVE COMPONENTS: |
Detonators: | (See Appendix I, page 309) |
| Exploders: | C.E. pellets | |
| Filling: |
Amatol or Pentolite. |
|
REMARKS: |
(1) |
This bomb is supplied with a No. 28 or No. 30 tail pistol, and may or may not be fuzed in the nose. |
| (2) |
Anti-disturbance fuze No. 845, formerly incorporated in the nose of bombs fuzed with No. 37 tail pistol, is obsolete. |
|
|
(3) |
Tail fins usually painted red when time pistol is used. |
|
|
 |
