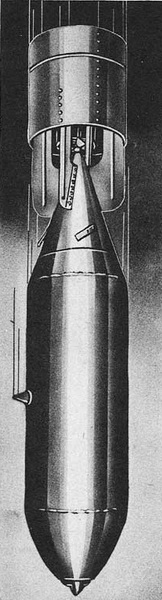

MEDIUM CAPACITY BOMBS |
|
USE |
These bombs are designed for general operationel use as alternative to the corresponding G.P. bombs. They are comparable to the U.S. G.P. se-ries with a loading factor of approximately 50%, parallel sides, and ogival nose. |
|
FUZING |
|
They may be fuzed at the nose and tail, or at the nose or tail only if so desired. When shipped, they are plugged at the nose and fitted with a No. 28 or No. 30 tail pistol (without detonators), the pis-tol acting as a tail transit plug. |
|
CHARACTERISTICS |
|
These bombs are painted dark green overall, with a red band around the bomb body near the nose denoting that the bomb hasbeen filled, and a light green band around the nose and indicating its H.E. nature. The type of filling is stencilled around the bomb body, as is the monogram of the filling sta-tion, date of filling, etc. These bombs are supplied fitted with transit bases, and the larger bombs have transit rings in addition. |
