| USSR – BOMBS AND FUZES |
| BOMBS |
| GENERAL PURPOSE |
| FAB-50 (welded) |
| TYPE |
G.P., 100 lb. (welded) |
| NOSE FUZE | |
| TAIL FUZE |
None |
| TOTAL LENGTH (in.) |
37.2 |
| BODY LENGTH (in.) |
24.1 |
| MAXIMUM DIAMETER (in.) |
9.4 |
| WALL THICKNESS (in.) |
.31 |
| TOTAL WEIGHT |
133 lbs. |
| CHARGE/WEIGHT RATIO |
41.5% |
| MAIN CHARGE (TYPE & WEIGHT) |
TNT – 55 lbs. |
| SUSPENSION |
Single suspension band |
| COLOR MARKINGS |
Grey overall |
| BODY CONSTRUCTION |
The tear-drop sharped body consists of two forged steel sections, welded together just aft of the supsension band. The after section is conical and the forward sec-tion is ogival, ending in a fuze adapter. The base is clo-sed with a base plate having a threaded extension for the attaching of the tail unit. There is no provision for a tail fuze. |
| TAIL CONSTRUCTION |
The tail unit consists of a cone with four (4) fins welded, or riveted, to it. Four (4) diagonal struts, are riveted to the fins, for support. |
|
REMARKS – This bomb is fitted with an extra suspension band, when it is to be dropped from a American bomb shackle. |
|

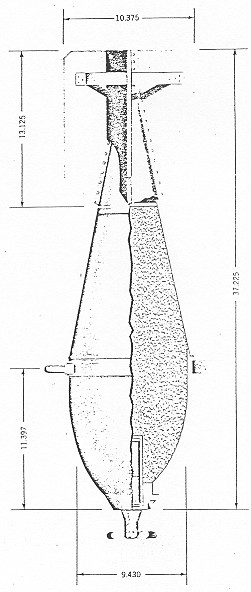

Figure 28 – FAB-50 (WELDED) GENERAL PURPOSE BOMB |
|
|
 |
