USSR – BOMBS AND FUZES |
BOMBS |
ARMOR PIERCING |
PTAB-1.5 |
TYPE |
Shaped Charge, anti-tank bomb |
NOSE FUZE |
None |
TAIL FUZE |
Mechanical Impact firing mechanism |
TOTAL LENGTH (in.) |
14 |
BODY LENGTH (in.) |
–– |
MAXIMUM DIAMETER (in.) |
2.1 |
WALL THICKNESS (in.) |
–– |
TOTAL WEIGHT |
3.3 |
CHARGE/WEIGHT RATIO |
43% |
MAIN CHARGE (TYPE & WEIGHT) |
1.5 lbs. |
SUSPENSION |
Normally carried in a cluster container |
COLOR MARKINGS |
–– |
BODY CONSTRUCTION |
The bomb is composed of spot welded sheet metal sec-tions. A cylindrical sheet metal casing is pressed over the spot welded sections for added strength and frag-mentation effect. |
TAIL CONSTRUCTION |
The tail unit is cylindrical sheet metal member with four narrow longitudinal sheet metal fins. |
REMARKS – This bomb will produce a 1.8 inch diameter hole in 3 inch armor plate. It also has some fragmentation effect. Its primary targets are tanks and trucks. |
The PTAB-2.5, generally similar to the PTAB-1.5, has been reported. |

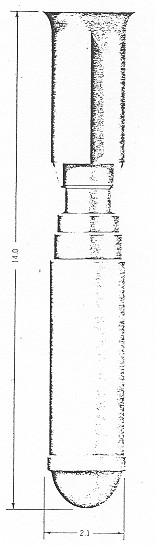

Figure 16 |
|
